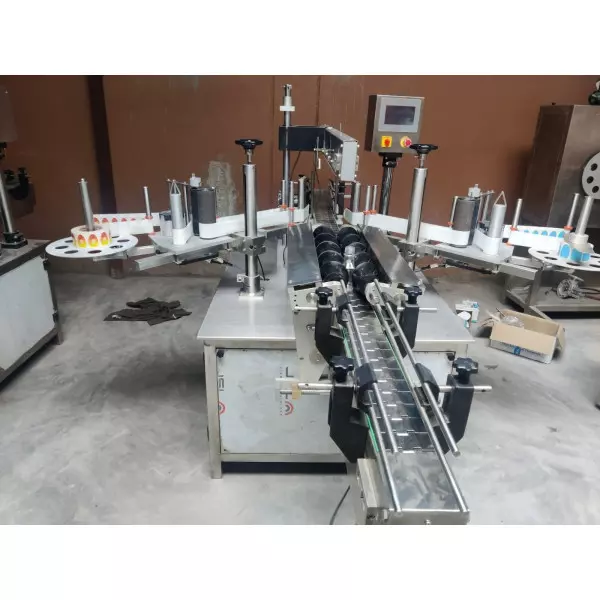

Automatic Double Side Sticker Labeling Machine

Product Details:

SVDL 100/200/300 is Automatic Double Side Sticker Labeling Machine. This model has been designed to apply one, two or more front/back self adhesive labels on different size of flat/reound/elliptical shape containers. Both label dispensers operates independently hence that can be used different of size label on either sides. Fully synchronize label dispenser system with all the labeler components, allowing the speed to be regulated with a single point and maintaining precise labeling even during start-up, stopping or slow down stages, synchronized with the entire line. The SVDL100/200/300 is one of the most user compatible fully protected and almost maintenance free. Capability of this model is labeling up to 300 BPM depending on products and label size.

Silent Features:

• SS 304 construction including main machine frame.
• Both label dispensers operate independently.
• Labeling of one or more sides with Multiple labels.
• Very smooth and high speed of operation. (Not Required by operator).
• Built-in AC Freq. drive system.
• Accurate label placement.
• Built-in product counter.
• Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

Optional Features:

• Label Roll Empty: Machine stop with alarm.
• Missing label: Machine stop with alarm or online pneumatic operated product rejection system.
• Towerlight: Indicate the status of a process.
• Online printer.
• Online inspection of printing and batch no.
• Servomotor instead of the stepper motor for the high-speed application.
