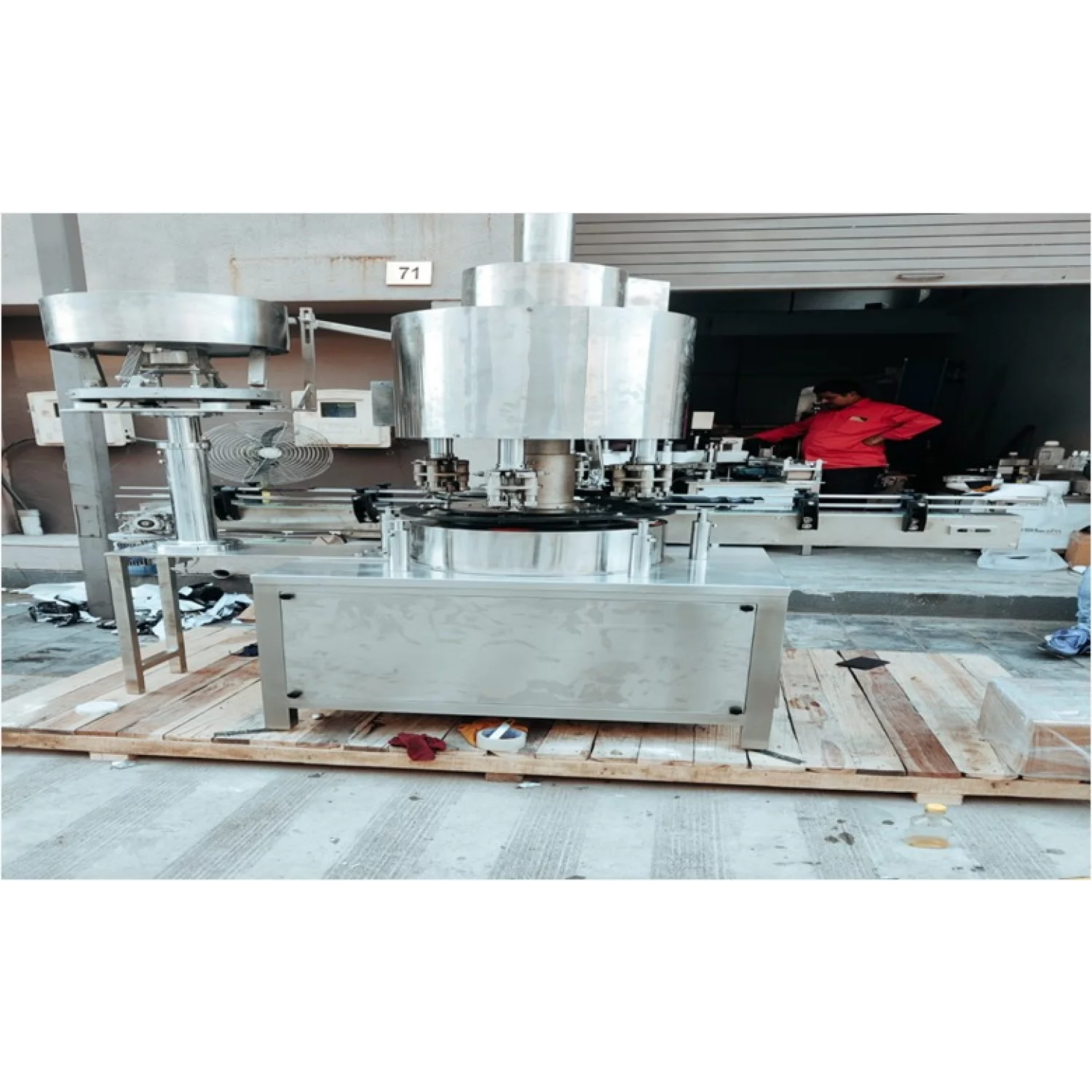

4 Head Capping
4 Head Capping Details
TECHNICAL SPECIFICATION
Automatic Four Head Screw Capping Machine-BEACM-100
| Model | Automatic 4 Head Screw Capping achine - BEACM-100 |
| Containor Type | :PET,GLASS,HDPE,PE ETC. |
| Speed * | : Up to 60 bottle per min. |
| Cap Size | : 20-50 mm |
| Conveyor | : 2000 mm (L) x 100mm (W) x 850 mm (H) S.S. slat chain Conveyor |
| Direction | : Left to Right. |
| Power supply | 3–Phase 400V, and Earthing 50 Hz AC Supply. |
| Change parts | : Star wheel, Guide |
Machine Features
· Model no. :BEACM-100
· Machine speed: Up to 100 bottle/min
· Voltage - 3-Phase, 430V, 50 Hz
· Synchronized motor for conveyor and star wheel
· Bottle jam, Machine stop with Indication
· Special design of Hopper for more storage capacity
· Induction motors make: ROTOMOTIVE
· VFD make : Allen Bradley (Made in USA)
· Pneumatic Make : Janatics
· Switch gear Make: Schneider Electric
· Synchronized star wheel and conveyor
· No bottle sensors optional
· Product Material: PET,GLASS,PE.HDPE
· Machine size:2000*1100*1200 mm
· Cap Size: 20 to 50 mm
