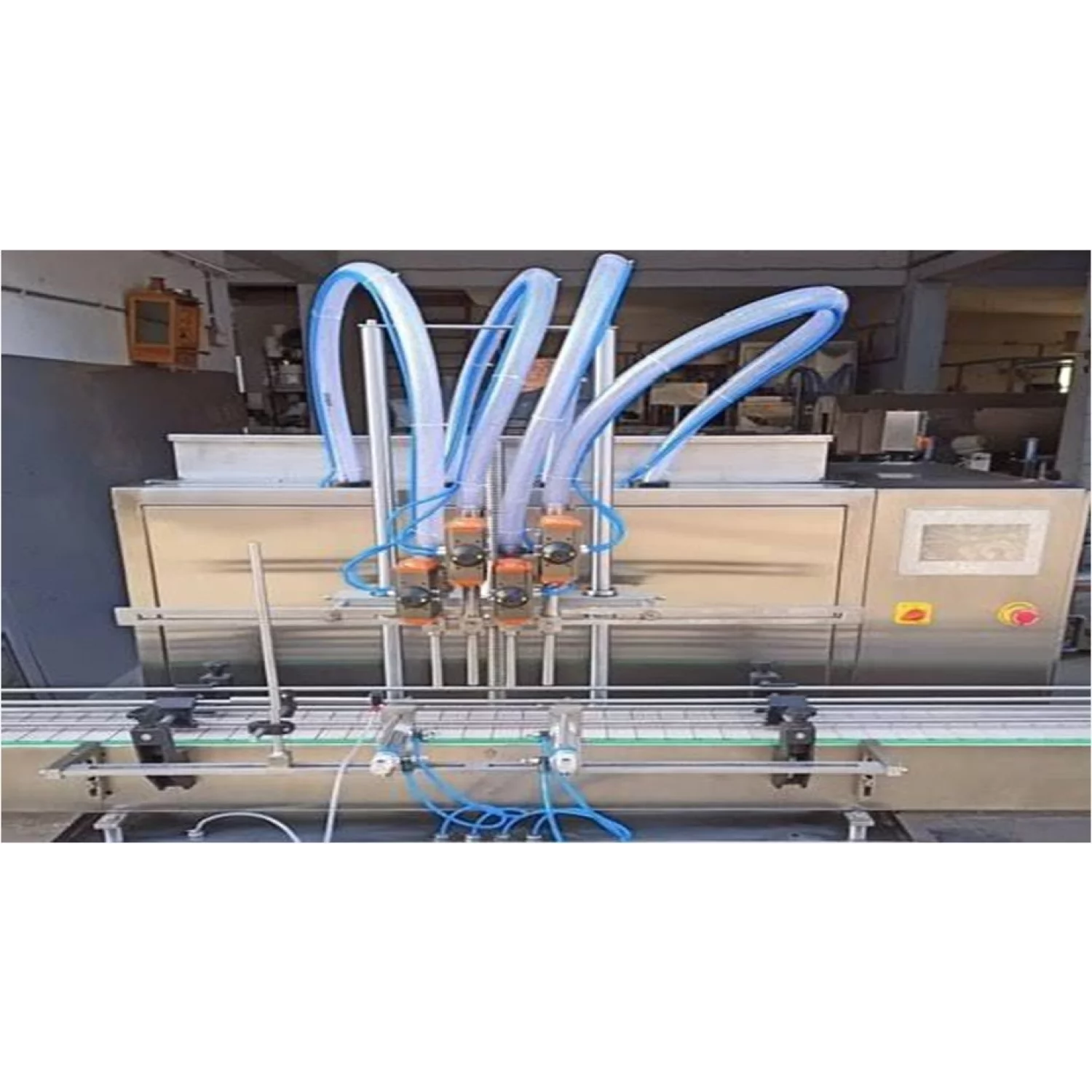

4 Head Electronics Filling
4 Head Electronics Filling Details
TECHNICAL SPECIFICATION
| Model | : Automatic Electronic Oil Filing Machine(4 Nozzle)- BEAEFM-100 |
| Continer size | : Max. Bottle Height: 400mm Dia: 150mm |
| Speed | :Up to100 ml 36 bottle per min.,500ml 24 bottle par min., 1000 ml 16 bottle par min,5000 ml 6 BPM |
| Bottle Sizes** | :500 ml. to 5 litters |
| Machine Dimension | :3000*1600*1100 mm |
| Filling Mechanism | : Advance flow meter system |
| Conveyor | : 3.0 Mtr*200mm*800mm SS-Slat Chain Conveyor |
| Direction | : Left to Right |
| Power Supply | :1-Phase,230 V.50 Hz |
| (Note: This is not the actual picture of your required machine; this is just a concept |
| to show you, the original may vary as per designing) |
MACHINE FEATURES:
• Model no. : BEAFM-100
• Machine speed: Up to 40 bottle/min depends on bottle size
• Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Butter Milk, Edible Oil, Milk, Honey, Lubricants etc.
• Available in GMP model
• HMI with Synchronized to PLC for One Point Changeover (Mitsubishi/Panasonic- Japan)
• Flow meter with Gear pump for High Accuracy
• One Point Changeover system for minimum changeover time
• Built in proxy sensor for No bottle Arrangement
• Imported Motors and Gears set(Bonvario-Italian Technology)
• SS-304 elegantly Matt finished machine
• Pneumatic stopping arrangements(Janatics Make Pnuematic)
• Proximity Sensor for Bottle sensing
• Imported VFDs for Better productivity(Allen Bradley-USA)
• No bottle, Machine Stop with indication(Leuze Sensors)
• Voltage : 1-Phase, 230V, 50 Hz
• Product size: Up to 5000 ml
• Machine size:3000*1600*1100 mm
OPTIONAL FEATURES
• Online Visual Inspection System
• Acrylic machine enclosure
• Tower light : Indicates process of Machine
• Low Oil Level Alarm
• Online Rejection system
Related Products

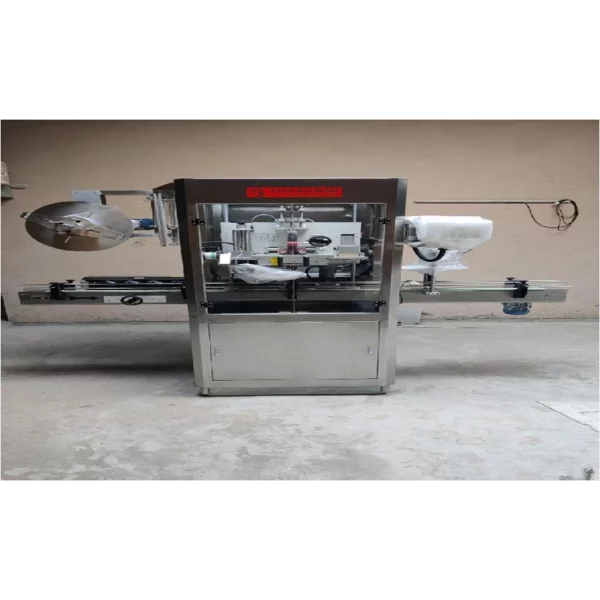

Automatik Shrink Sleeve Applica
ModelAutomatic Shrink Sleeve Applicator-BEASA-100Container size:Approx . 100ml to 1000mlSleeve Siz... Continue

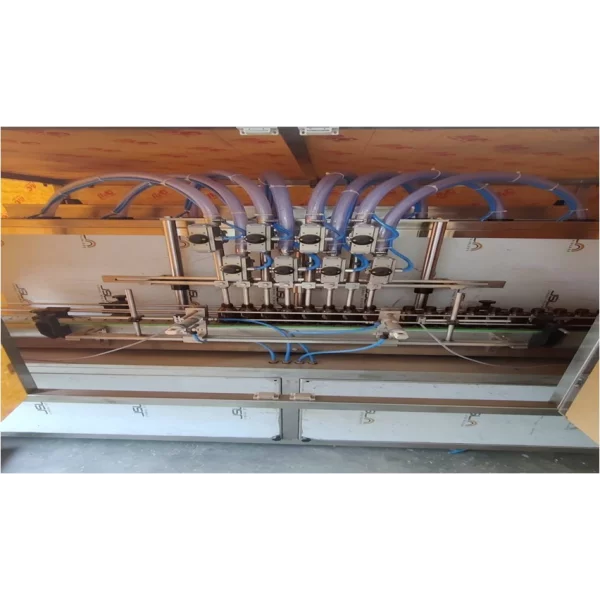

Automatic Oil Filling 8 Head
TECHNICAL SPECIFICATIONModel: Automatic Edible Oil Filing Machine (8 Nozzle)- BEAEOFM-100Continer size... Continue

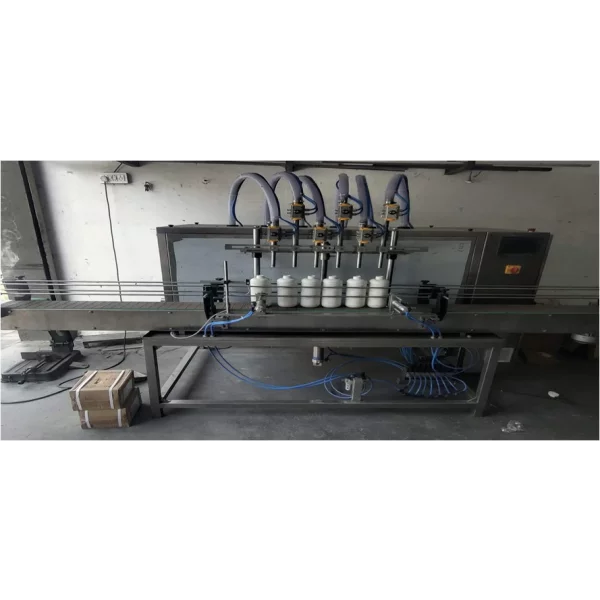

6 Head Servo Filling
