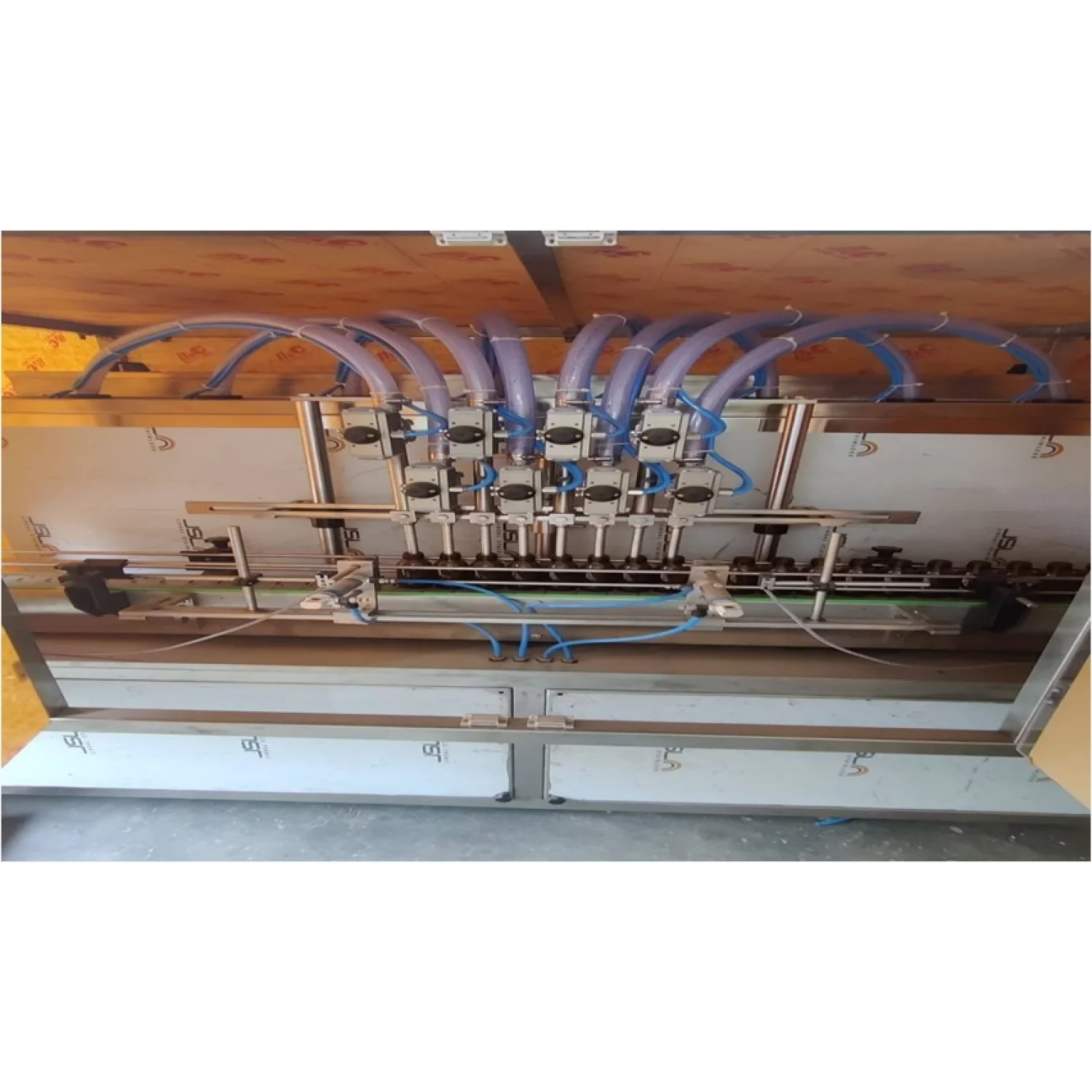

Automatic Oil Filling 8 Head
Automatic Oil Filling 8 Head Details
TECHNICAL SPECIFICATION
| Model | : Automatic Edible Oil Filing Machine (8 Nozzle)- BEAEOFM-100 |
| Continer size | : Max. Bottle Height: 400mm Dia: 150mm |
| Speed | :100 ml (72 BPM),200 Ml (56 BPM),500 ml (48 BPM),1000 ml (32 BPM) |
| Bottle Sizes** | :500 ml to 5000 ml |
| Machine Dimension | :2500*1600*1100 mm |
| Filling Mechanism | : Servo Control system |
| Contact Parts | : SS-316L |
| Conveyor | : 2.5 Mtr*200mm*800mm SS-Slat Chain Conveyor |
| Direction | : Left to Right |
| Power Supply | :1-Phase,230 V.50 Hz |
* Depends on Filling Volume ** With help of Change parts
MACHINE FEATURES:
• Automatic Edible Oil Filing Machine(8 Nozzle)
• Model no. : BEAEOFM-100
• Machine speed: 100 ml (80 BPM),200 Ml (60 BPM),500 ml (48 BPM)
• Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Butter Milk, Edible Oil, Milk, Honey, Lubricants etc.
• Available in GMP model
"• HMI with Synchronized to PLC for One Point Changeover(Pro-face -Japan)
"
• Servo with Gear pump for High Accuracy
• One Point Changeover system for minimum changeover time
• Built in proxy sensor for No bottle Arrangement
• Imported Motors and Gears set(Bonvario-Italian Technology)
• SS-304 elegantly Matt finished machine
• Pneumatic stopping arrangements(Janatics Make Pnuematic)
• Proximity Sensor for Bottle sensing
• Imported VFDs for Better productivity(Allen Bradley-USA)
• No bottle, Machine Stop with indication(Leuze Sensors- German Made)
• Voltage : 1-Phase, 230V, 50 Hz
• Product size: 60 to 250 ml
• Machine size:2500*1600*1100 mm
OPTIONAL FEATURES
• Online Visual Inspection System
• Acrylic machine enclosure
• Tower light : Indicates process of Machine
• Low Oil Level Alarm
• Online Rejection system
