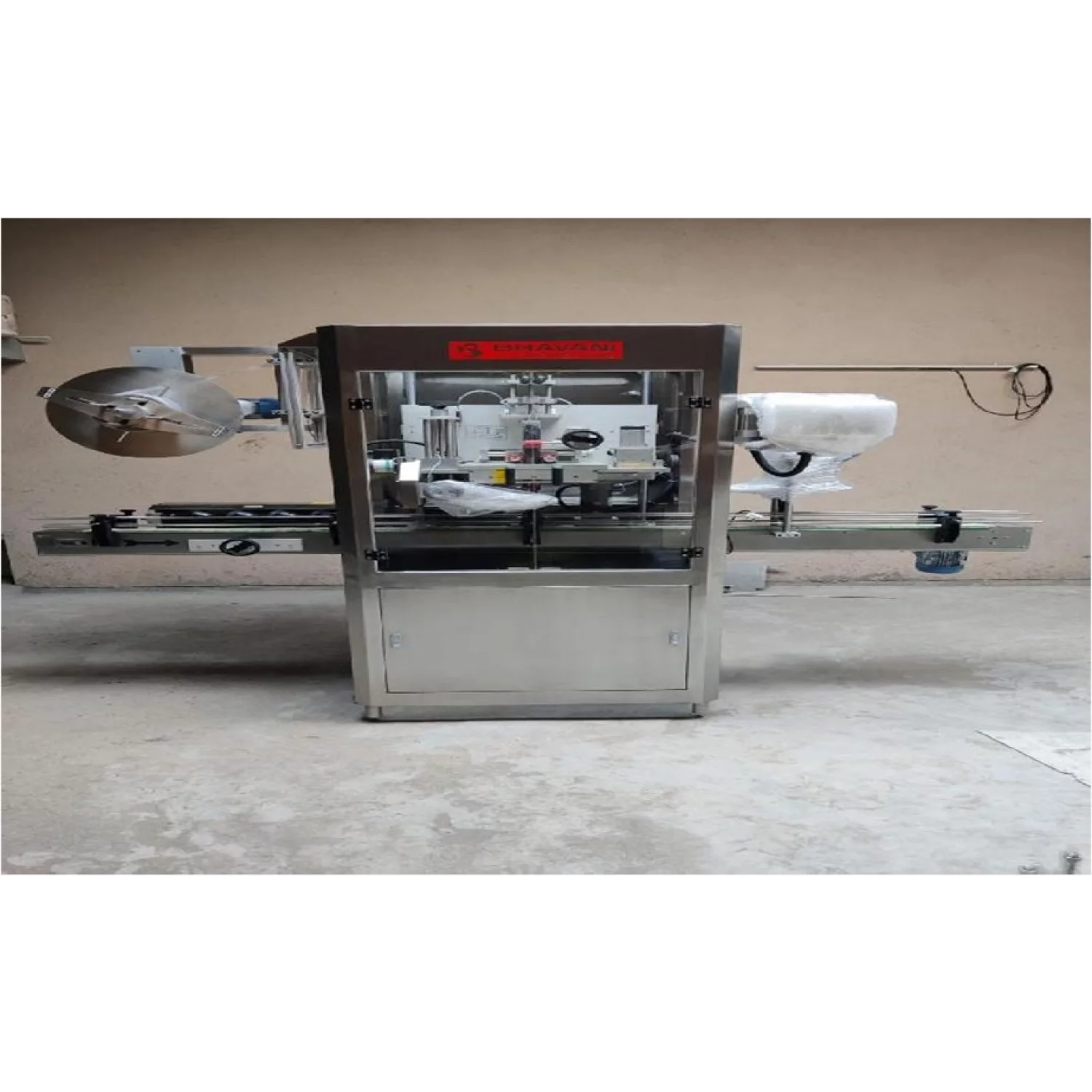

Automatik Shrink Sleeve Applica
Automatik Shrink Sleeve Applica Details
| Model | Automatic Shrink Sleeve Applicator-BEASA-100 |
| Container size | :Approx . 100ml to 1000ml |
| Sleeve Size | :50-195mm(L)x50-100 mm(W) |
| Label Roll Dia. | :400 mm Dia. |
| Sleeve Characteristics | : Min.40 Micron Thick |
| Speed** | :Up to 100 Bottle per min. |
| Power supply | :2 kW,1–Phase230V,50Hz AC Supply. |
| Direction | :Left to Right. |
| 1. Servo Motor & Drives : Panasonic (Japan) 2. VFD: Allen Breadley (USA) |
| 3. HMI :Profex (7 INCH)(Japan) 4. Motors : Oriental Motors (Europe,)& Bonvario(Italy) |
** Depends on label length* with help of change parts(Mandrel)
MACHINE FEATURES :
· Servo Based Feeder And Cutter Unit
· Stainless steel construction
· Built-in PLC operated HMI for one point operation
· Perfect sleeve placement
· Accurate sleeve cut length
· Bottle will travel on conveyor simultaneously product sensor senses and count the product
· After that sleeve will be inserted to product
· Servo motor with controlled by Advance Automated Servo drive
· Optical Sensors for higher accuracy
· Built in product sensor and product counter
· Smooth and high speed Operation
· Synchronized operation
· Automatic Fault detection and error code system
· Settable speed at one point
· Online delay available
· Brush motor for complete placement of sleeve
· Compatible with Glass, HDPE, PET, Tin bottles.
· Speed up to 100 BPM on Various models
· Minimum changeover time for one bottle to another bottle
· Allen Bradley VFD for Induction motor control
· Leuze Sensors for Sleeve and Bottles
· Panasonic Servo Motor and Drive set
OPTIONAL FEATURES :
- Label roll empty alarm
- Online product rejection system with pneumatic operated
- Tower light : Indicates status of machine process
- Online Printer
