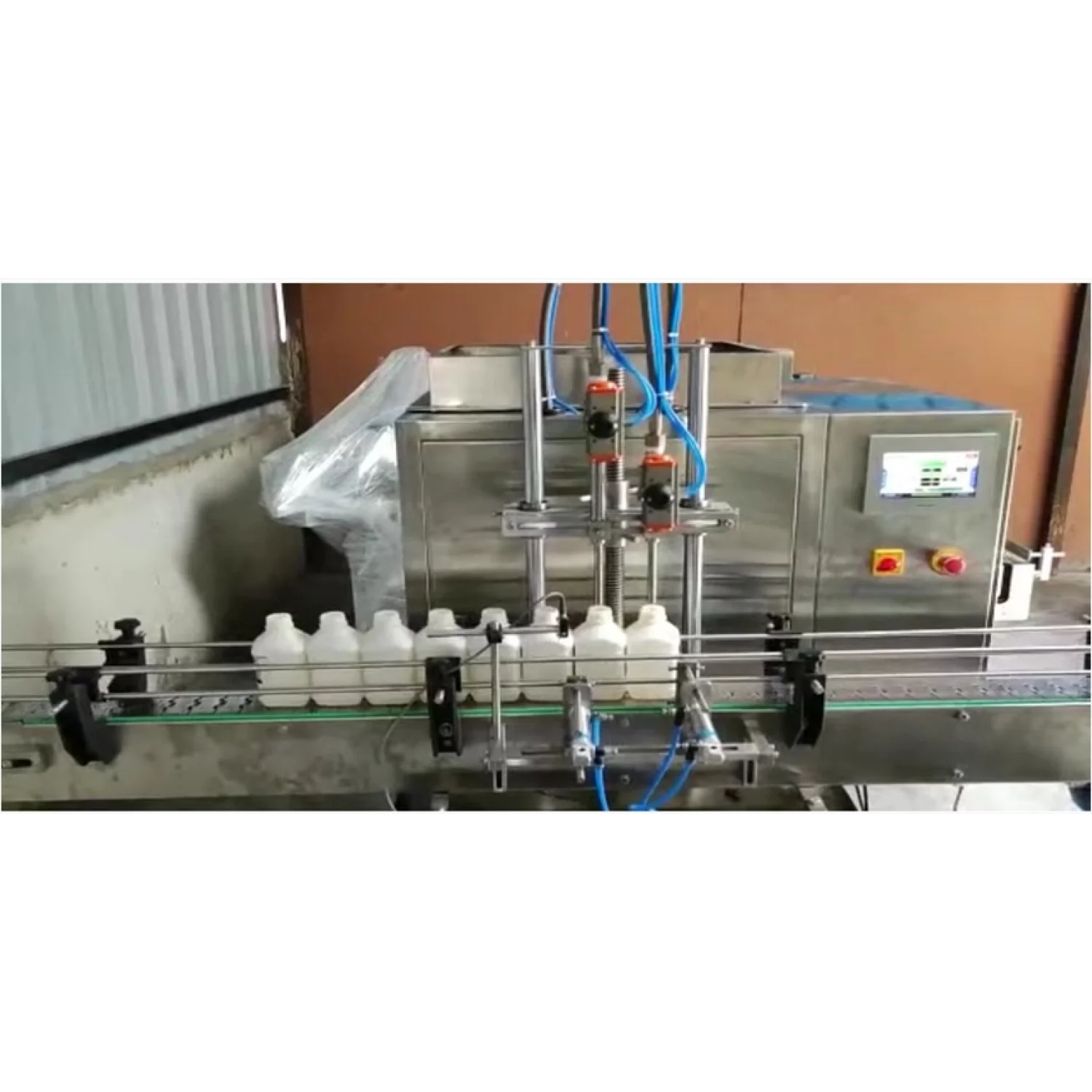

Automatic Servo Liquid Filling Machine
Automatic Servo Liquid Filling Machine Details
| Model | : Automatic Servo Liquid Filing Machine-2 Nozzle-BEAFM-100 |
| Speed | : 100 ml-18 BPM ,250 ml-14 BPM,500 ml -12 BPM,1000 ml -8 BPM |
| Bottle Size: | :Up to 1000 ml. |
| Machine Dimension | :2000*1100*1600 mm |
| Filling Mechanism | : Servo Control system |
| Contact Parts | : SS-316L,SS-304 |
| Conveyor | : 2.0 Mtr*100mm*800mm SS-Slat Chain Conveyor |
| Direction | : Left to Right |
| Power Supply | :1-Phase,230 V.50 Hz |
MACHINE FEATURES:
• Automatic Liquid Filling Machine (2 Head)
• Model no. : BEAFM-100
• Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Butter Milk, Edible Oil,Milk, Honey, Lubricants etc.
• Available in GMP model
• HMI with Synchronized to PLC for One Point Changeover (Mitsubishi/Panasonic- Japan)
• Servo motor with Gear pump for High Accuracy(Panasonic- Japan)
• One Point Changeover system for minimum changeover time
• Built in proxy sensor for No bottle Arrangement
• Imported Motors and Gears set(Induction motors make: Bonvario/ Bonfiglioli / RotoMotive) USA
• SS-304 elegantly Matt finished machine
• Pneumatic stopping arrangements(Janatics Make Pnuematic)
• Proximity Sensor for Bottle sensing
• Imported VFDs for Better productivity(Allen Bradley-USA)
• No bottle, Machine Stop with indication(Leuze Sensors)
• Voltage : 1-Phase, 230V, 50 Hz
• Machine size:2000*1100*1600 mm
OPTIONAL FEATURES
• Online Visual Inspection System
• Acrylic machine enclosure
• Low Liquid Level Alarm
• Online Rejection system
